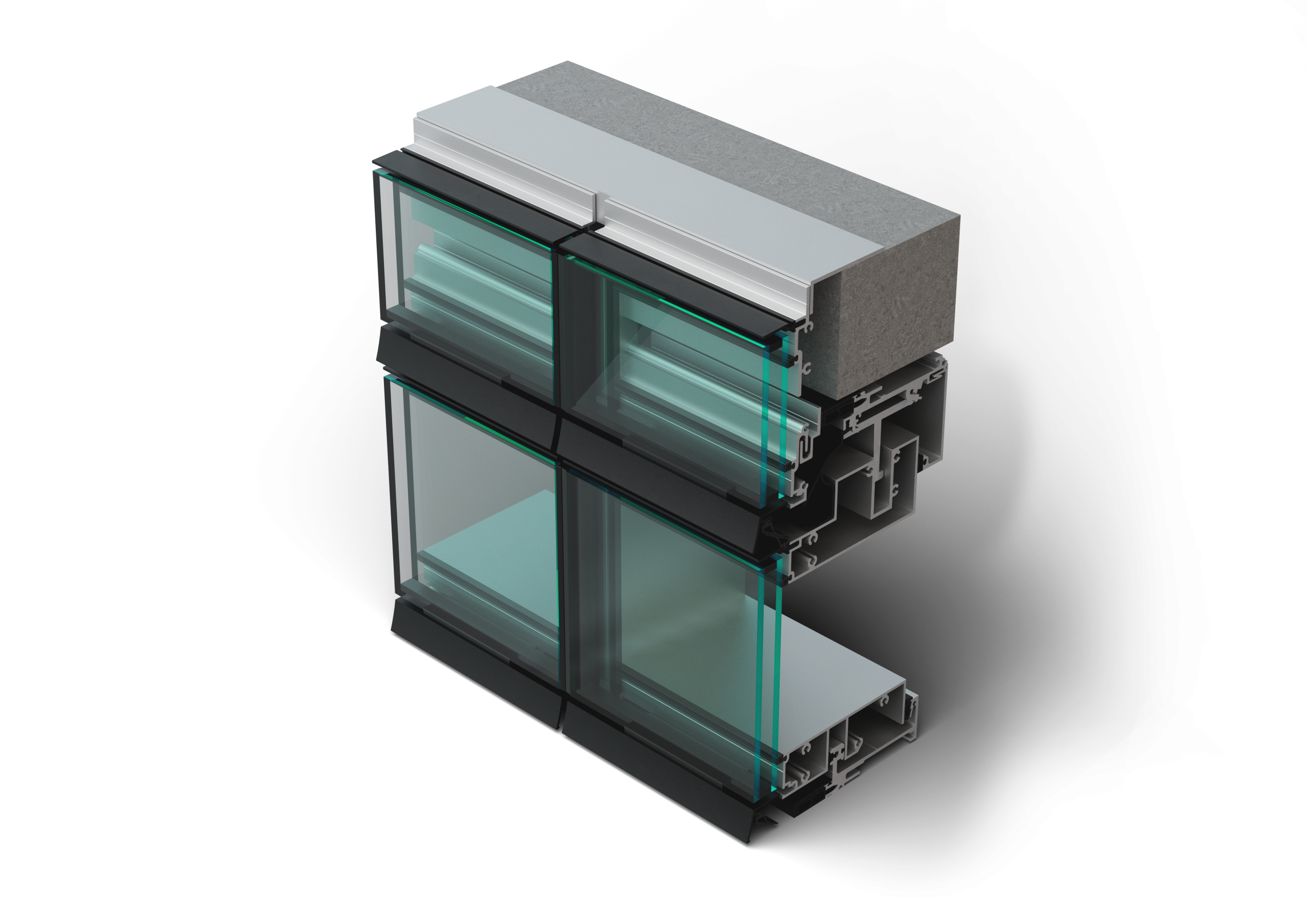

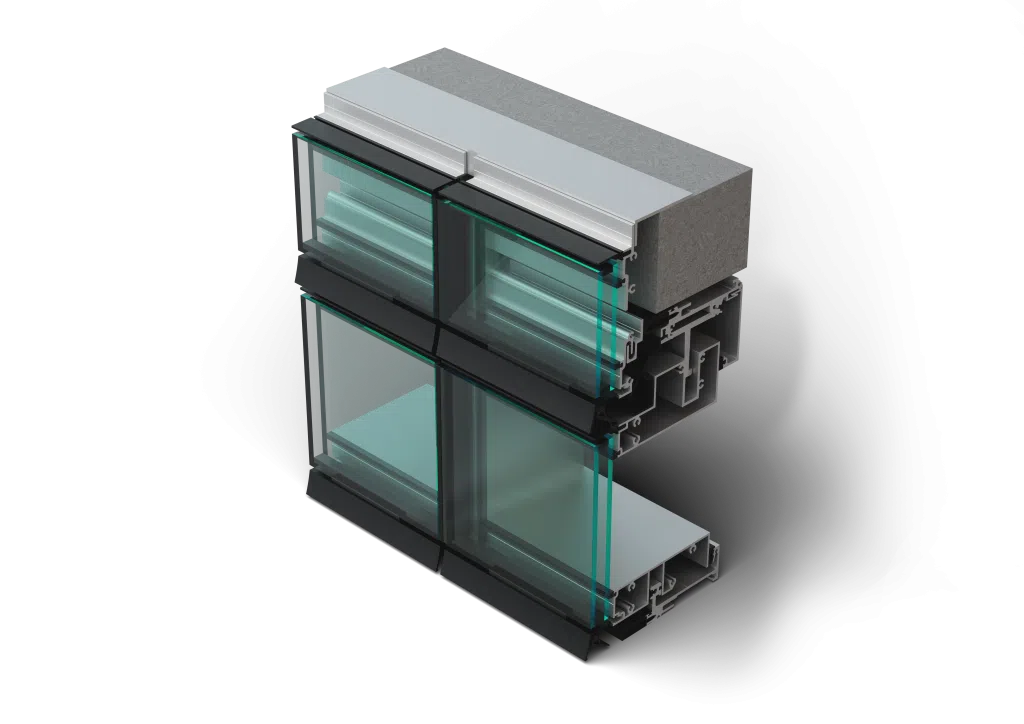

Metroview 4-SSG Window Wall Exterior Product Render

Window Wall and Ribbon Window

MetroView® 4-SSG Window Wall

The MetroView® 4-SSG Window Wall is designed to meet project needs across North America, delivering confidence for extreme climates, regions with strict energy codes and projects with specific aesthetic requirements. This next-generation window wall combines high performance with sleek aesthetics in a slab-to-slab construction, making it an ideal choice for multifamily buildings, condominiums, hotels and more.

  • 2.5” sightline
  • 5.5” mullion depth
  • Structural Silicone Glazed (SSG)
  • Unitized, inside glazed system
  • High thermal performance
  • Tested to meet seismic requirements
  • Supports glass sizes up to 5′ by 14′
  • Four-sided structural silicone glazed system
  • Overall frame U-factor as low as 0.20 – 0.35
  • Will be impact and seismic tested in late 2026
  • STC rating of up to 40
  • Exceptional air and water performance

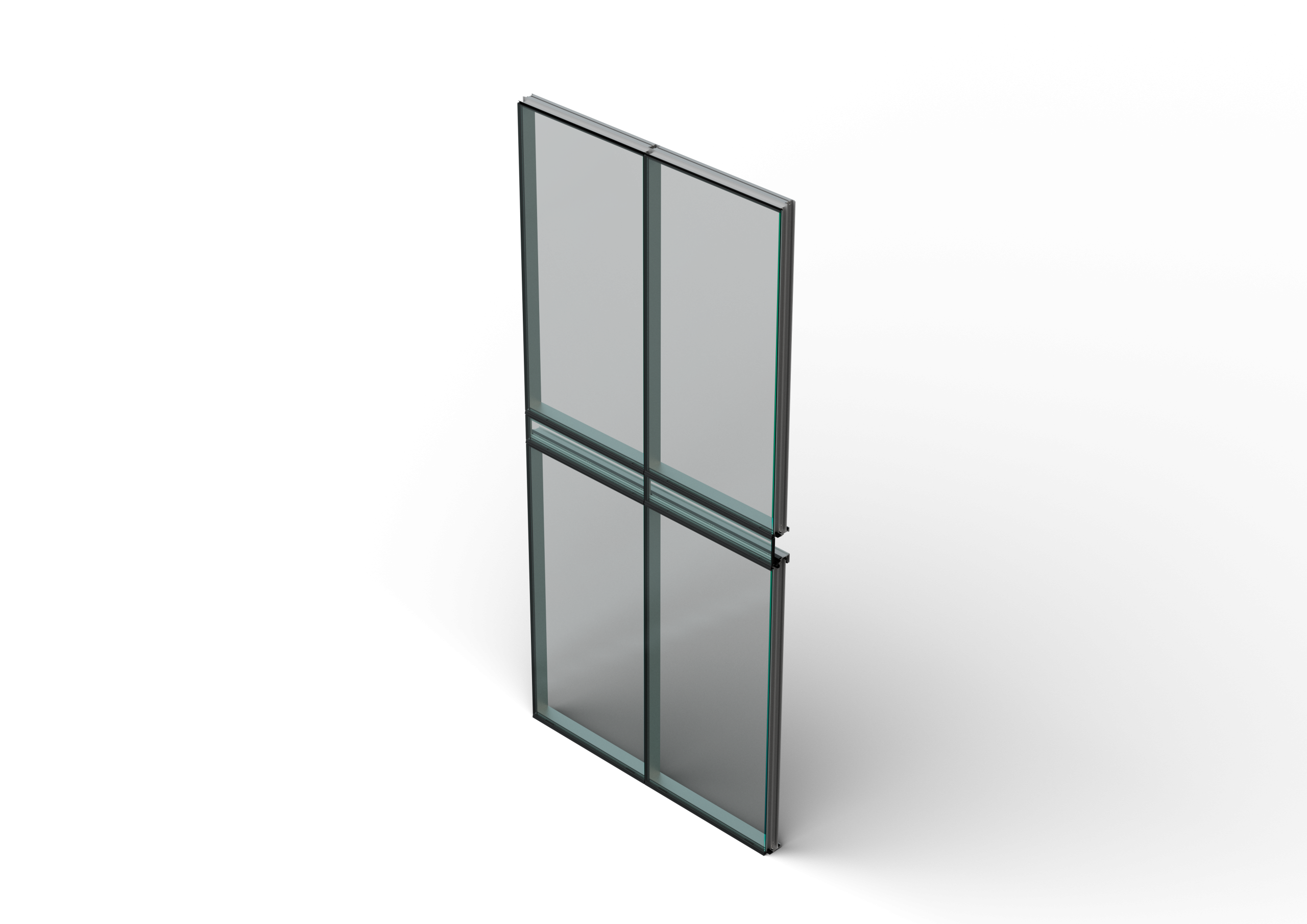

  • Slab-to-slab construction achieves a minimalist, all-glass appearance
  • Accommodates large glass panels up to 5′ wide x 14′ tall
  • Full interior installation with minimized wet sealing for faster installation

Optional Features

Thermal Technology

Find out more here.

Seismic Resistance

Find out more here.

Acoustic Performance

Find out more here.

Contact James Butler for more information.

MetroView® 4-SSG - Flyer
Finishes Brochure
5 MB
Finishes Information - Architectural Detail Manual
238 KB
Anodize Finishes - Color Chart
82 KB
Liquid Paint - Color Chart - Permadize®
713 KB
Liquid Paint - Color Chart - Permafluor™
268 KB

While most of our products are not hazardous in and amongst themselves, hazardous properties can develop when the product is altered through cutting, welding, and grinding.  Details on the specific hazards that can develop and the proper protective measures to use can be found in the SDSs.

Arconic’s SDS database provides PDF files of safety information on specific materials.  The SDS ID numbers (product code) and description for materials used in Kawneer products are listed below.

SDS # DESCRIPTION / TITLE
1405 – Kawneer Thermal Break Filled Extrusions
1385 – Kawneer Acrylic Paints
1386 – Kawneer Fluoropolymer Paints

1526 – Kawneer Bloomsburg Solvent Recovery Still Residuals

1387 – Painted Architectural Aluminum Extrusions
509 – Aluminum Extrusions, Anodized Aluminum Products



Search Arconic’s SDS database for safety information on specific materials.
